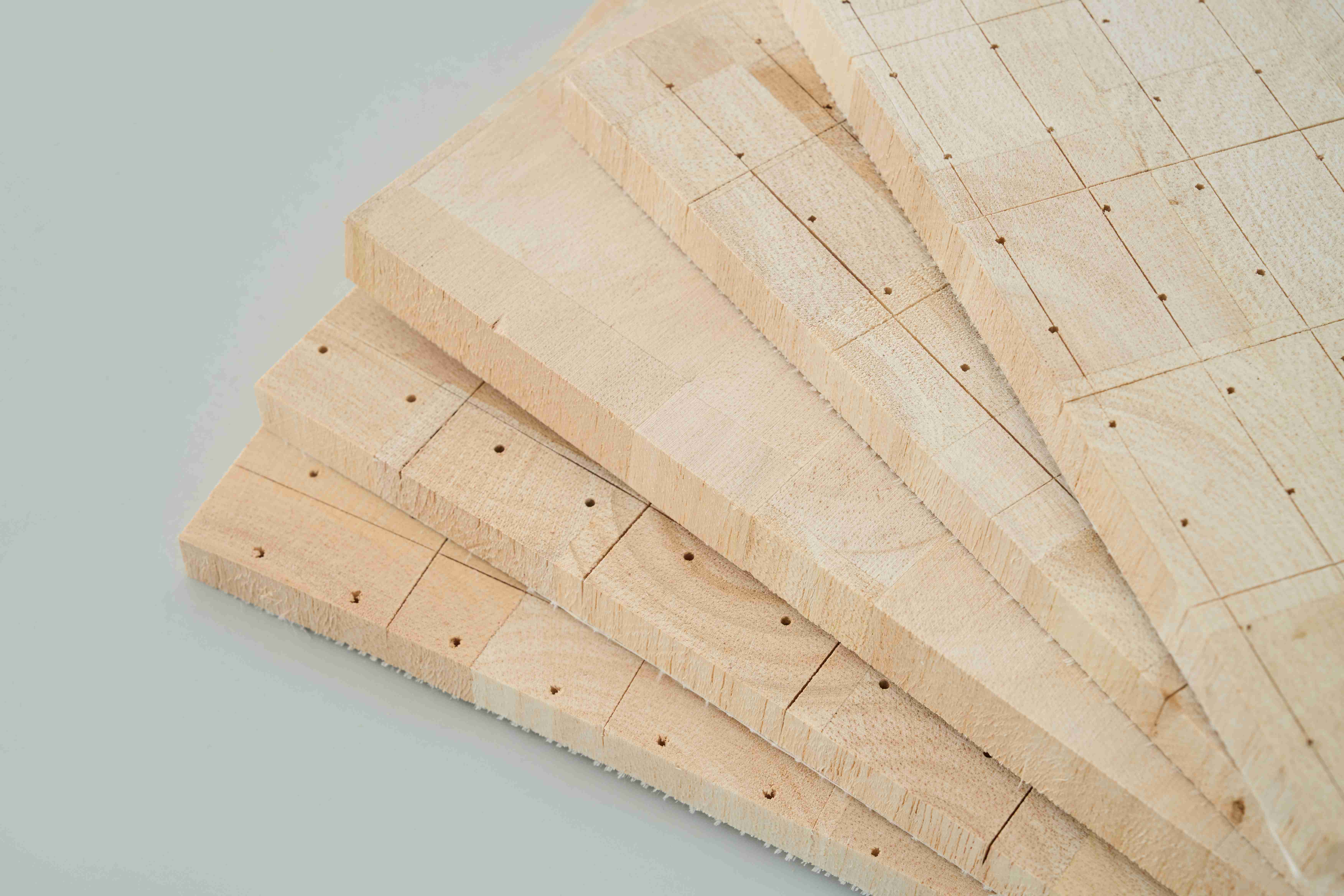

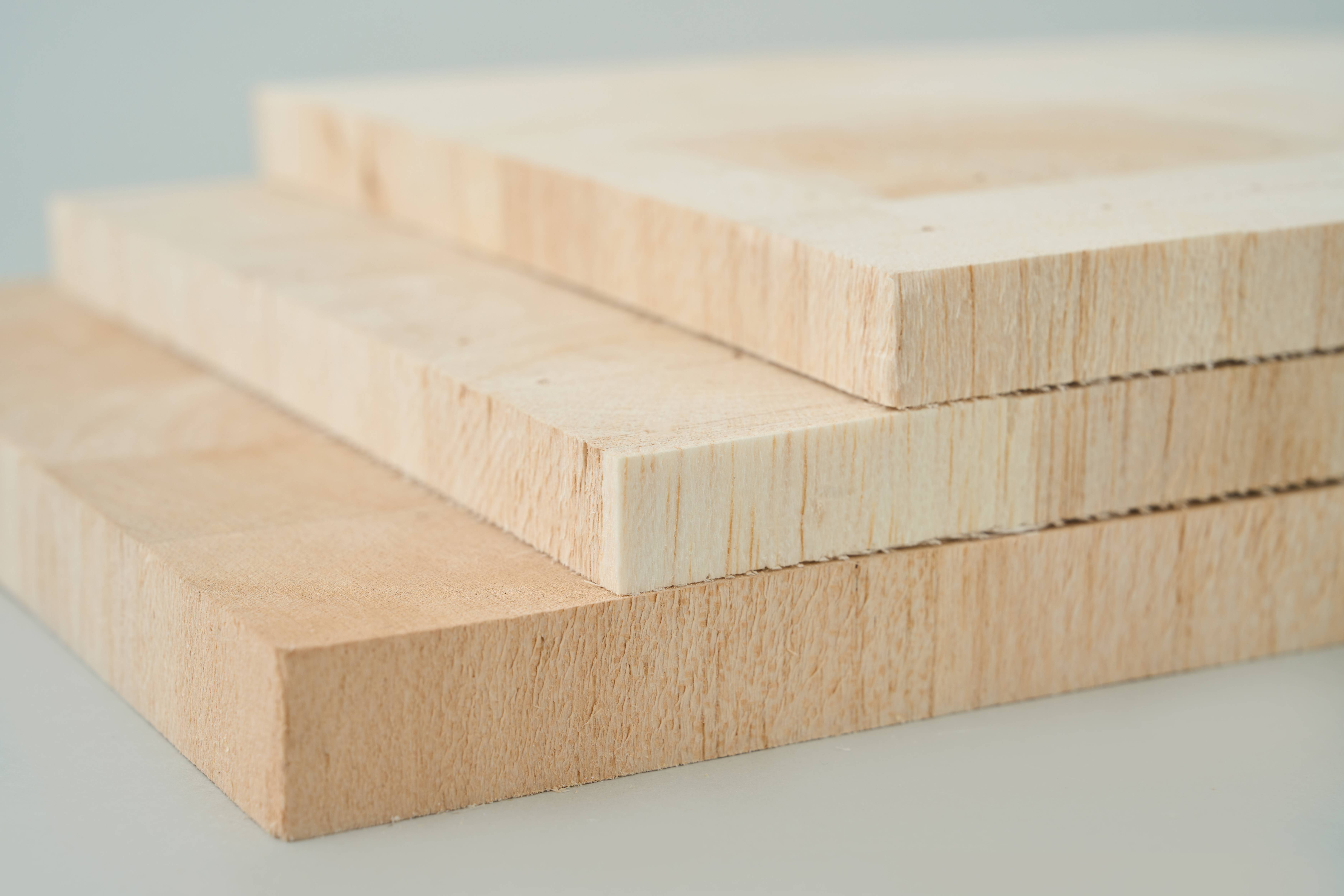

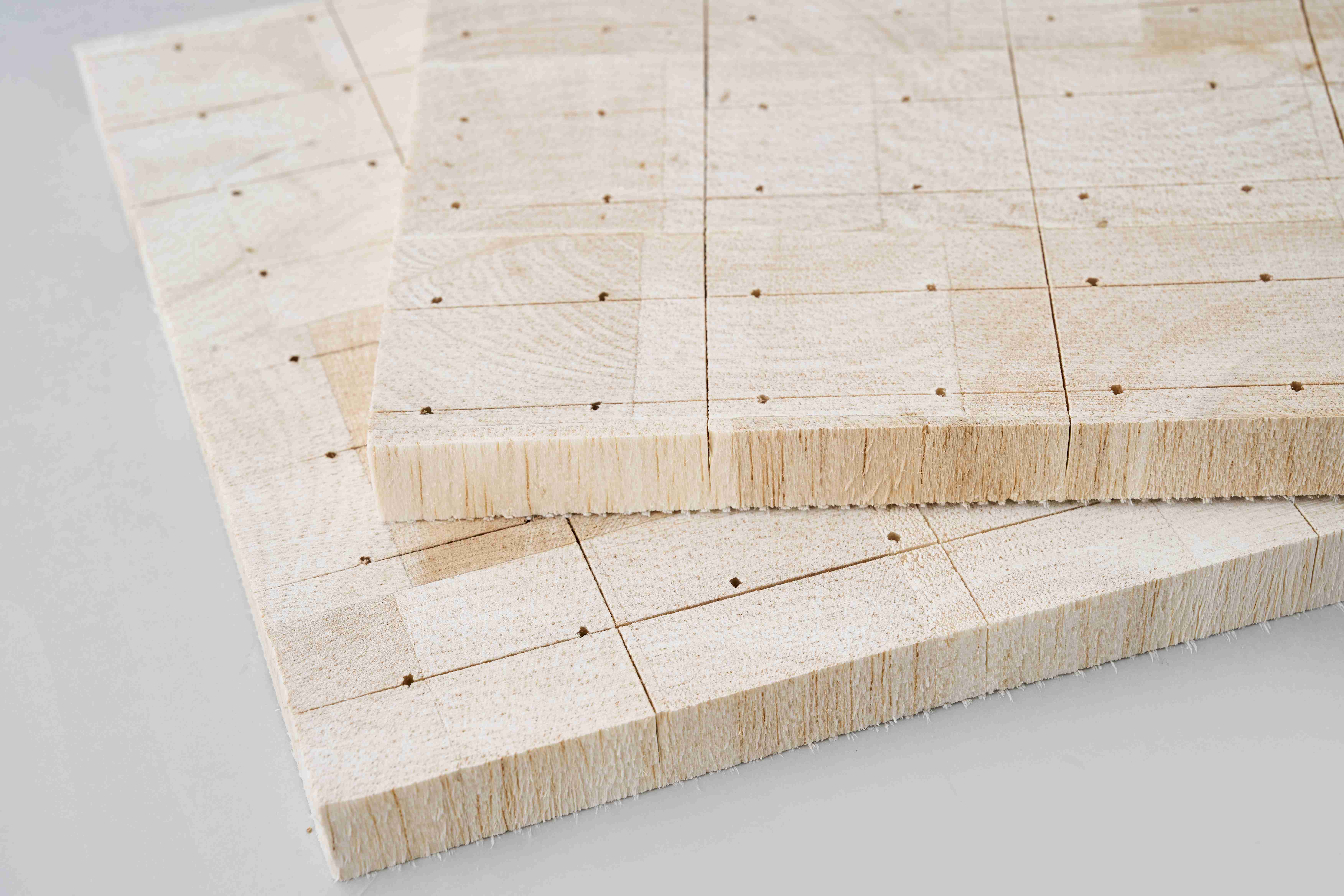

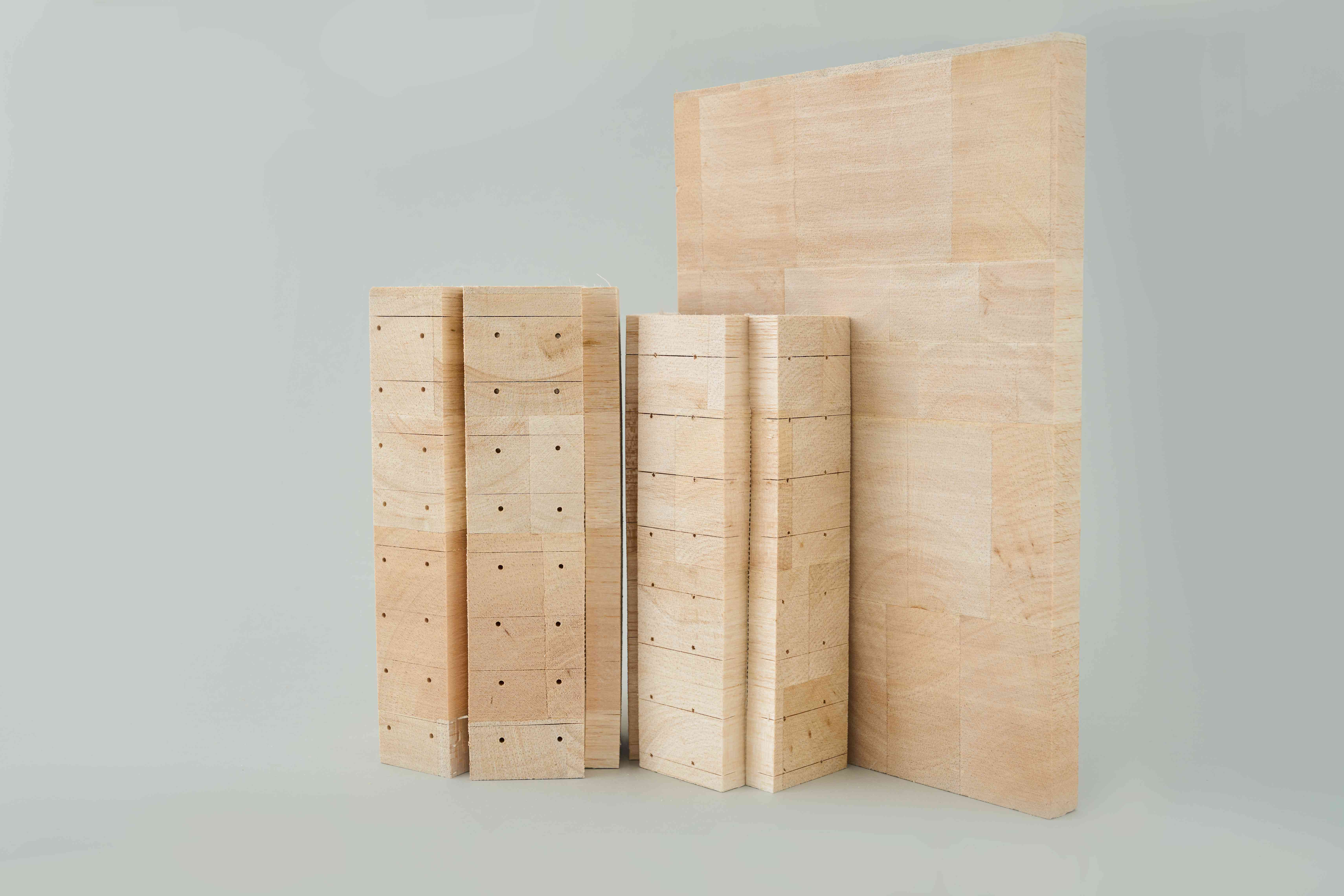

Vicell B-series Balsa TDS
不斷超越的芯材專家
模具：手糊、rtm用玻璃鋼模具，尺寸穩定性好
Mould: hand lay-up, rtm glass fiber reinforced plastics mould with favorable size and stability
船舶：船殼、尾封板、龍骨、甲板、上層結構、艙壁等
Shipping: hull,stern transom plate,keel, deck, upper structure, bulkhea
軍艦：上層結構、艙壁、甲板、整流裝置
Warship: upper structure, bulkhead,deck,rectifying device
鐵路：導流罩、地板、墻壁、門、頂板、內隔板
Railway: fairing, floor, wall, door, ceiling,inner diaphragm
汽車：地板、頂板、單殼體車身結構
Automobile: floor, ceiling,monocoque body
航空：地板、內隔板、貨艙及集裝箱
Aviation: floor, inner diaphragm, cargo chamber, containers
工業：風力葉片、導流罩、防腐罐、管道
Industries: wind power blades, fairing cover, antiseptic pot and pipeline
建筑：混凝土結構、輕質結構以及建筑模板
Architecture: concrete construction, light structure and building templates
軍事：戰術掩體、貨艙及集裝箱
Military: blindage, cargo and container
體育：滑雪板、滑水板等
Sports: ski and water ski boards
其它：撞擊與反沖測試設備
Others: impact and test equipment
項目 Item | 測試標準 Test standard | 單位 Unit | B100 | B130 | B150 | |||
標稱密度 Apparent nominal density | ISO 845 | Kg/m3 | 100 | 130 | 150 | |||
密度范圍 Range density | ISO 845 | MPa | 85-110 | 110~135 | 135~176 | |||
含水率 Moisture content | GB/T1931 | % | ≤12 | ≤12 | ≤12 | |||
壓縮強度Z Compression strength Z | ISO 844 | MPa | 5 | 7.8 | 10.0 | |||
壓縮模量Z Compression modulus Z | ISO 844 | MPa | 1600 | 2200 | 3000 | |||
拉伸強度Z Tensile strength Z | ASTM C297 | MPa | 8 | 9 | 10 | |||
拉伸模量Z Tensile modulus Z | ASTM C297 | MPa | 1800 | 2350 | 3000 | |||
剪切強度XZ、YZ Shear strength XZ、YZ | ISO 1922 | MPa | 1.8 | 2.1 | 2.60 | |||
剪切模量XZ、YZ Shear modulus XZ、YZ | ISO 1922 | MPa | 140 | 160 | 180 | |||
|
|
|
|
|
| |||

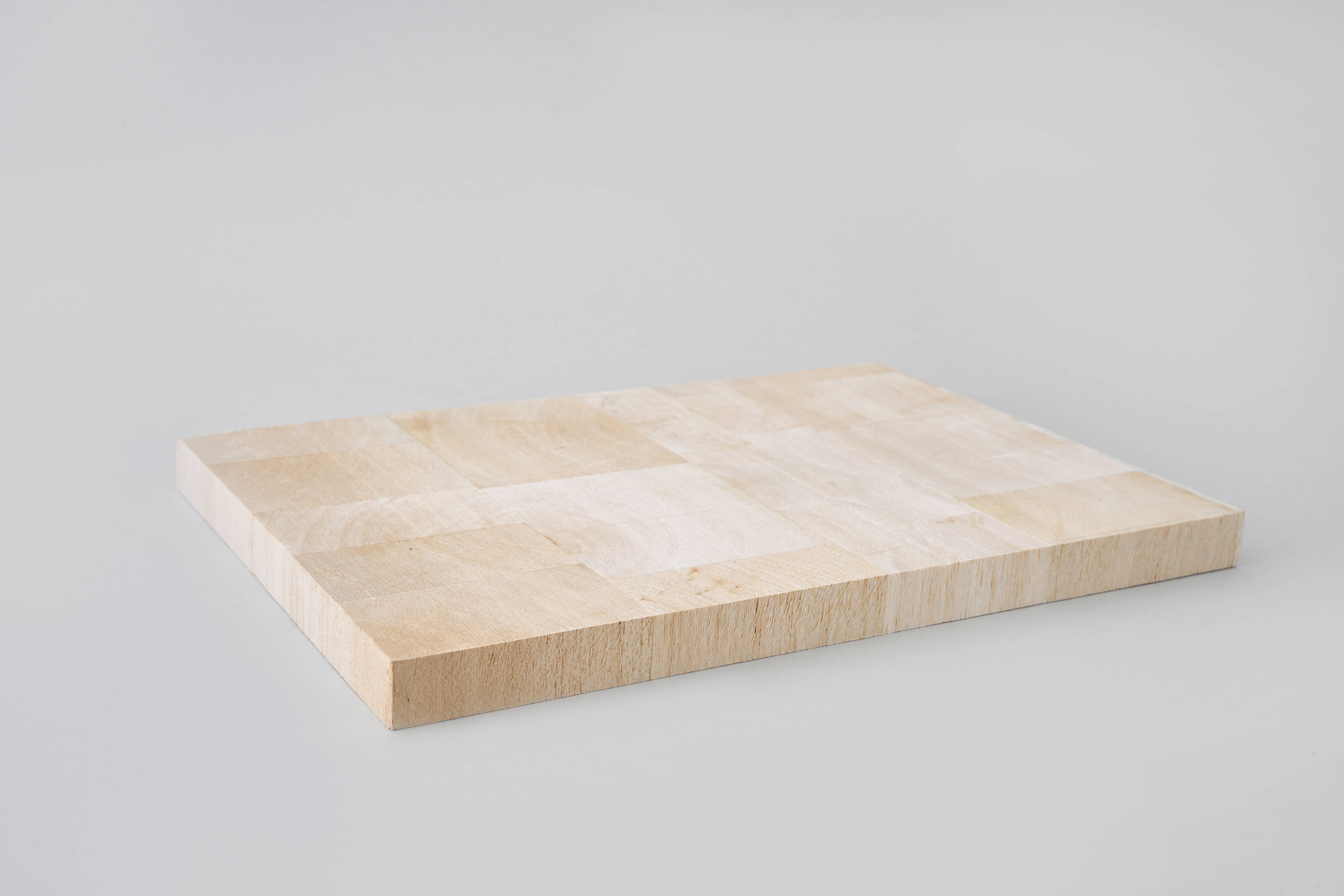

標準板材Standard sheet | Length（mm） | 1220 | tolerance | ±2mm | ||||
Width（mm） | 610 | tolerance | ±2mm | |||||
包裝Package | 包裝采用標準的防護措施進行包裝，包裝箱密封嚴密，適合整體吊裝。良好的防潮、防沖擊、非法裝卸保護措施，確保貨物安全運送到用戶現場。 The packaging is packaged with standard protective measures, and the packaging box is tightly sealed and suitable for overall hoisting.Good protection measures against moisture, shock and illegal loading and unloading to ensure the safe delivery of goods to the user site. | |||||||
儲存Storage
| 將材料包裝在紙板或塑料板中，防止水分、灰塵、陽光直射和碰撞。貯存溫度應低于50℃，相對濕度應為30%-80%，并應密封良好，控制巴爾薩的含水量以滿足要求。同時，瀝青木板不得有擠壓、變形、開裂等缺陷，存放車間需要設置相應的防火設施。Pack the material in cardboard or plastic sheeting to keep it out of moisture, dust, direct sunlight and bumps.The storage temperature should be lower than 50℃, the relative humidity should be 30%-80%, and it should be well sealed to control the moisture content of Balsa to meet the requirements.At the same time, Balsa wood panels shall not be squeezed, deformed, cracked and other defects; corresponding fire prevention facilities are required in the storage workshop. | |||||||
注：1 所提供的數據給出了標稱密度的測試近似值。由于密度的變化，有些測試值可能低于上面表格所示。
2 拉伸性能測試不帶玻纖蒙皮
